Measurement Instruments

First version!

Introdution

Here I want give you all the information to make and find the rigth measurement instruments.



PC Based Oscilloscope


Soundblaster PCI 128
This is a cheap choice and the sample rates is limited but there are many good free software to use it (FFT included)
  • Frequency response 30hz to 15khz = +0.55 / -1.88db
  • 1 khz Total Harmonic Distortion .00685% @ -.21db
  • Signal To noise Ratio 79.36db
  • Dymanic Range 81.86db
  • sample rates 48kHz
  • resolution 16bit
    soon link to software for PCI 128

    PC Based Digital Storage Oscilloscope Mk3 (circuit and board available 58$)
    by David L. Jones of Tronnort Technology in Sydney Australia.
  • 20MS/s
  • 5MHz analog bandwidth.
  • Dual channels
  • Optional external trigger input.
  • PC-Based, connects to standard parallel port.
  • Easy to build on one single sided pcb.
  • Vertical position adjustments.
  • Fully software controlled timebase and attenuation rages.
  • 100ns/div to 50ms/div timebase in 1-2-5 sequence.
  • 100mV/div to 5V/div vertical ranges in 1-2-5 sequence.
    web pages

    PC Based Digital Storage Oscilloscope with Spectrum Analyzer - 399$ (best choice)
    from PROTEK
  • 50 MHz FFT Spectrum Analyzer
  • 100 Mbps per channel
  • 30 Mhz Bandwidth
  • Low Cost, High Capability DSO Oscilloscope
  • Parallel Port PC Connection
  • Auto Calibration
  • Auto Setup
    web pages

    PC based oscilloscopes (Virtual Instrumentation) - 487$ or 799$
    from PICO Technology Limited
  • Models: ADC-212 or ADC-216
  • Spectrum ranges: DC to 1.5MHz or DC to 166kHz
  • Resolution: 12bit or 16bit
    web pages

    NI 5102 - Computer-Based Oscilloscopes (about 1000$)
    from National Instruments
  • 2 channels
  • 15 MHz bandwidth
  • 20 MS/s single-shot sampling
  • 1 GS/s RIS for repetitive sampling
  • 8-bit vertical resolution
  • Maximum input range of 5,000 V with a 1000X probe
  • 663,000 sample waveform memory
    intro web page
    web page
    data sheet

    Signal generator



    AC voltmeter



    Distortion meter

    In these last years this type of circuits are no more used because who make this measurement want also to see the armonic decay and this is possible only with an FFT analisys.

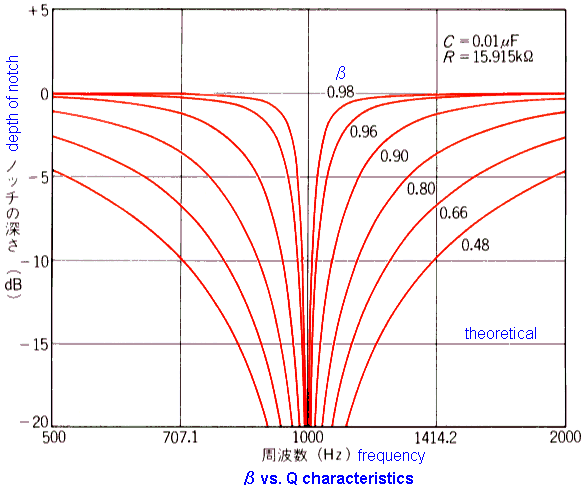

    frequency response
    theoric circuit
    final circuit
